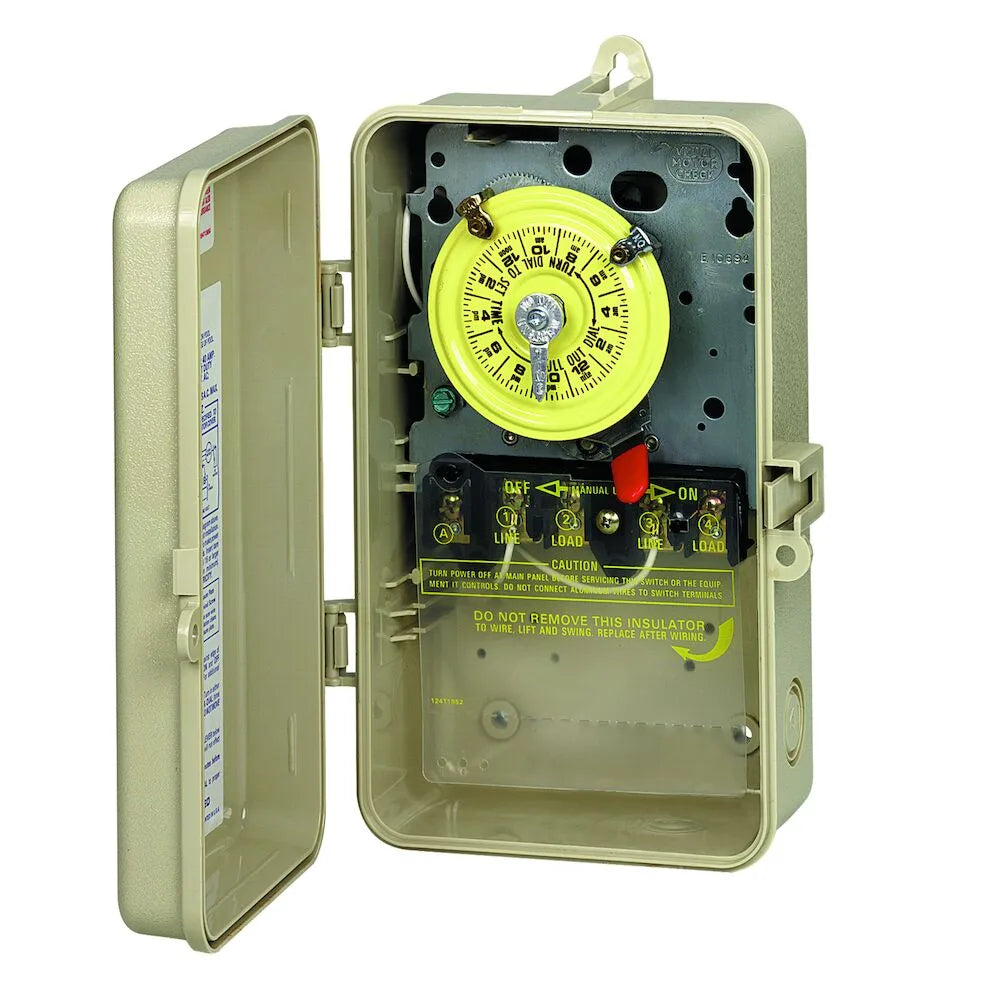

This 24-Hour DPST Mechanical Time Switch is a robust scheduling solution for pool equipment, lighting, heaters, and more. Operating on 208–277 VAC, it allows you to automate up to 12 ON/OFF cycles per day, with simple, reliable analog controls. The unit features a durable, weather-resistant plastic enclosure (Type 3R), providing safe indoor or outdoor mounting without compromising performance. Ideal for installations where you prefer mechanical simplicity over programming complexity—no batteries or Wi-Fi needed.
Voltage: 208–277 VAC, 60 Hz
Switch Type: Double Pole, Single Throw (DPST)
Timing: Analog, 24-hour cycle
Programming: Up to 12 ON/OFF operations per day with 1-hour minimum intervals
Manual Override: Yes (for immediate control beyond scheduled settings)
Included Trippers: One ON and one OFF tripper included for quick setup
Enclosure Type: NEMA Type 3R – durable plastic housing suitable for indoor/outdoor use
Load Ratings:
Resistive: 40 A at 120–277 VAC
Inductive and Motor Loads: Rated for motors (e.g., 5 HP at 240 VAC)
Pilot Duty: 1000 VA at 120–277 VAC
Electronic Ballast: 16 A at 120–277 VAC
Applications: Ideal for pool pumps, heaters, hydro chlorinators, lighting, HVAC, and timers for equipment
Construction: Teeter-style terminal connections for reliable wiring
Certifications: cULus and CSA certified; built to industry motor load standards
Power Consumption: Approximately 3 W
Residential: 1 - year parts and labor warranty Commercial: 1 - year parts and labor (warranty is provided by the manufacturer)
