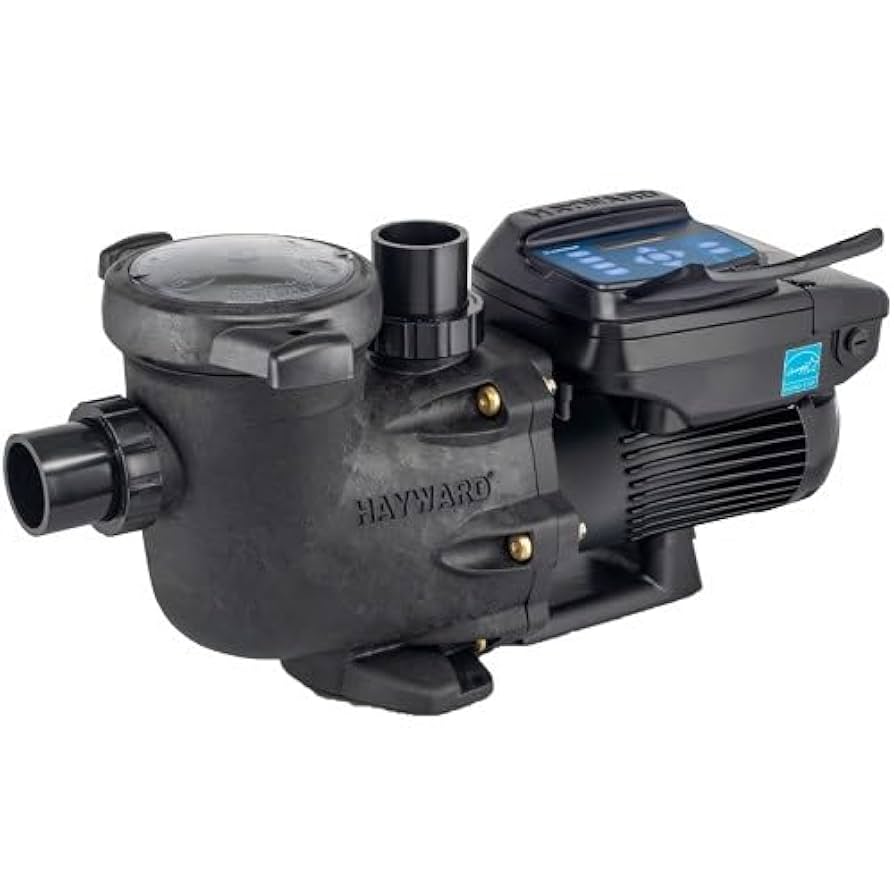

Hayward TriStar VS Variable-Speed Pool Pump – (115/230V)
Upgrade to elite efficiency and quiet performance with the TriStar VS , a powerful yet economical variable-speed pool pump — ideal for medium to large inground pools.
✅ TEFC permanent-magnet motor (600–3450 RPM)
✅ ENERGY STAR® certified – saves up to 90% on energy costs (approx. $1,500/year)
✅ Dual voltage (115V/230V) – no rewiring needed
✅ Viton® chemical-resistant seal for long-lasting durability
✅ Programmable digital interface with 8 custom timer settings
✅ Rotatable and wall-mountable control panel
✅ 2” x 2.5” CPVC unions & large strainer basket
✅ Quiet operation with drop-in compatibility for Pentair® and Sta-Rite®
✅ 3-year parts & 1-year labor warranty with professional install
Cut energy bills, boost performance, and enjoy a whisper-quiet pool system with one of Hayward’s top-tier variable-speed pumps.
Hayward TriStar VS 1.85 HP (900 Series)
Horsepower: 1.85 HP
Voltage: 115V / 230V (dual voltage)
Motor Type: TEFC permanent-magnet variable speed
Speed Range: 600–3,450 RPM
Weighted Energy Factor (WEF): 12.9 (115V) / 8.3 (230V)
Union Connections: 2″ × 2.5″ CPVC unions
Pump Seal: Viton® chemical-resistant seal
Interface: Fully programmable digital control, 8 timers
Display: Rotates to 4 positions or wall-mounted
Energy Savings: Up to 90% vs. single-speed pumps (ENERGY STAR certified)
Installation: Dual pump base for retrofit compatibility
Dimensions: ~16.8″ H × 14.5″ W × 30.8″ L
Shipping Weight: ~56 lbs
Hayward TriStar VS 2.7 HP (950 Series)
Horsepower: 2.7 HP
Voltage: 115V / 230V (dual voltage)
Motor Type: TEFC permanent-magnet variable speed
Speed Range: 600–3,450 RPM
Weighted Energy Factor (WEF): 10.1 (115V) / 7.3 (230V)
Union Connections: 2″ × 2.5″ CPVC unions
Pump Seal: Viton® chemical-resistant seal
Interface: Fully programmable digital control, 8 timers
Display: Rotates to 4 positions or wall-mounted
Energy Savings: Up to 90% vs. single-speed pumps (ENERGY STAR certified)
Installation: Dual pump base for retrofit compatibility
Dimensions: ~16.8″ H × 14.5″ W × 30.8″ L
Shipping Weight: ~62 lbs
Residential: 1-year labor & 3-year replacement parts Commercial: 1-year parts and labor (Warranty is provided by the manufacturer)
Pool Pump Installation Option Details: Covers replacement of an existing pool pump only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Electrical work includes connection to the existing electrical cable only — does not include rewiring or running a new cable. Service available in Miami-Dade, Broward, and Monroe counties.
