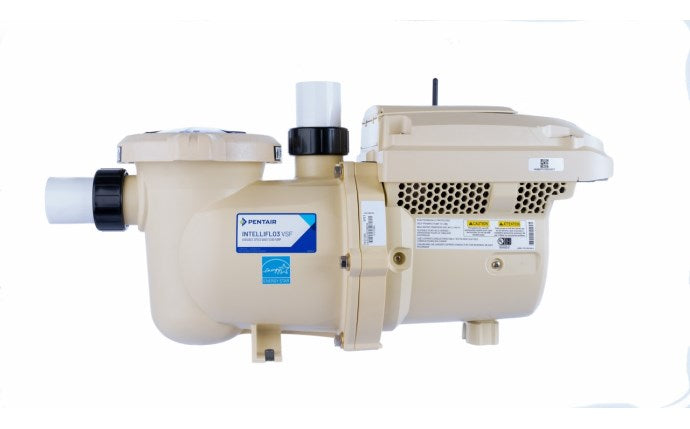

Upgrade your pool system with the IntelliFlo3 VSF Variable Speed Pump – the ultimate solution for energy savings and crystal-clear water. Designed to deliver unmatched performance, this 1.5 HP powerhouse runs on 115V or 208-230V, giving you flexible installation options.
🔹 Variable Speed & Flow Technology – Automatically adjusts for optimal efficiency
🔹 Energy-Saving – Cuts energy costs by up to 90% compared to traditional pumps
🔹 Ultra-Quiet Operation – Enjoy a peaceful backyard oasis
🔹 User-Friendly Interface – Built-in touchscreen for easy programming
🔹 Smart Pool Ready – Compatible with Pentair automation systems
Whether you're retrofitting or building new, the IntelliFlo3 VSF is the perfect pump for pools that demand performance without the noise or high energy bills.
Voltage: 208-230V, single-phase
Motor Type: TEFC (Totally Enclosed Fan-Cooled), permanent magnet variable-speed motor
Speed Range: 450 – 3450 RPM (programmable)
Flow Control: Built-in Variable Speed & Flow (VSF) technology to maintain constant flow automatically
Control: Integrated digital keypad with color LCD display; programmable speeds and schedules
Automation: Compatible with Pentair automation systems; includes I/O board for direct relay and sensor connections
Connectivity: Pentair Home app (WiFi & Bluetooth) for remote monitoring and control
Port Size: 2.5″ × 3″ union connections
Pump Housing: Thermoplastic composite, corrosion-resistant
Impeller: High-efficiency hydraulic design for improved performance and energy savings
Seal: Viton® mechanical seal, resistant to chemicals and heat
Strainer Basket: Extra-large with see-through lid for easy maintenance
Noise Level: Whisper-quiet operation with variable-speed motor
Application: Designed for residential pools, spas, and advanced water features requiring precise flow management
Certifications: ENERGY STAR® certified, DOE compliant, NSF listed
Dimensions: ~28″ L × 12.5″ W × 14.5″ H (approximate)
Weight: ~65 lbs
Residential: 3 - year labor & 3 - year replacement parts Commercial: 1 - year parts and labor (warranty is provided by the manufacturer)
Pool Pump Installation Option Details: Covers replacement of an existing pool pump only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Electrical work includes connection to the existing electrical cable only — does not include rewiring or running a new cable. Service available in Miami-Dade, Broward, and Monroe counties.
