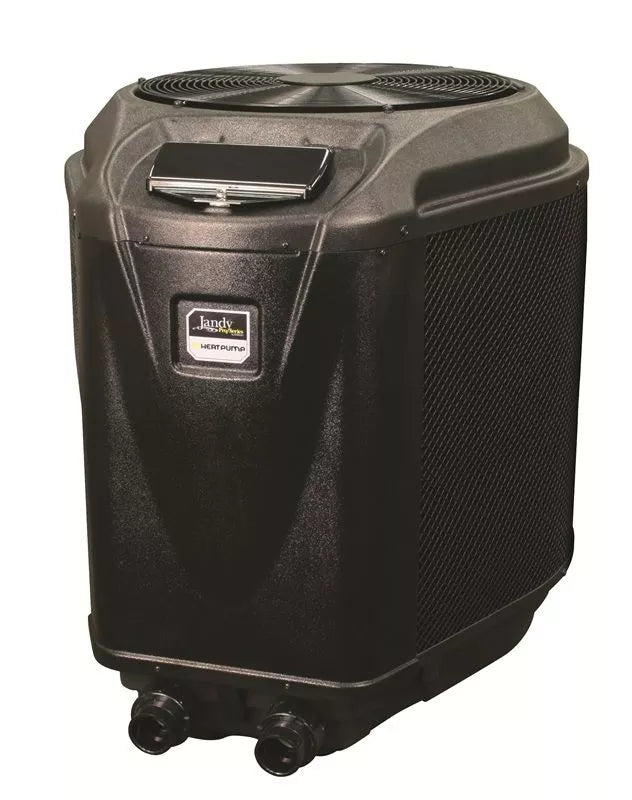

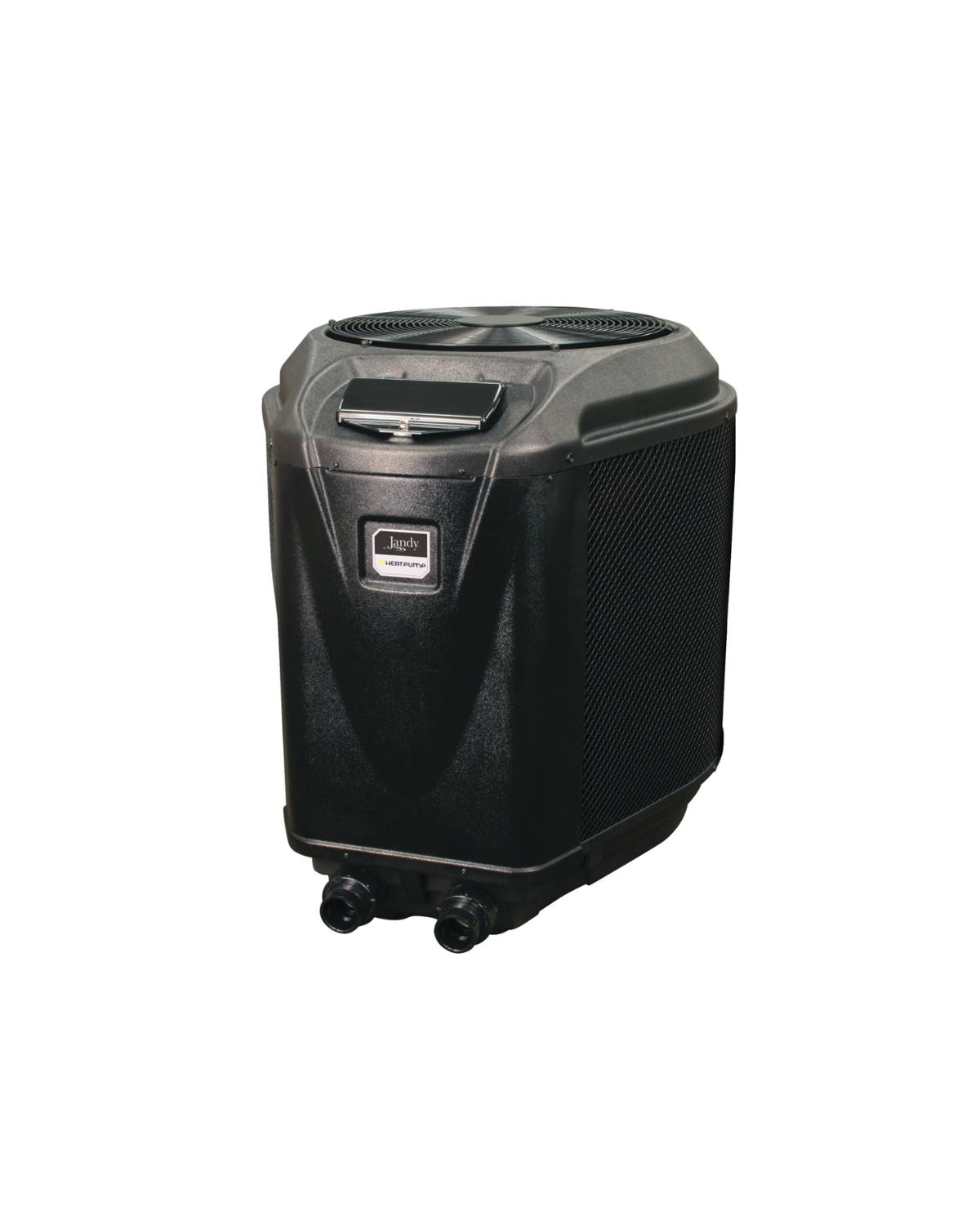

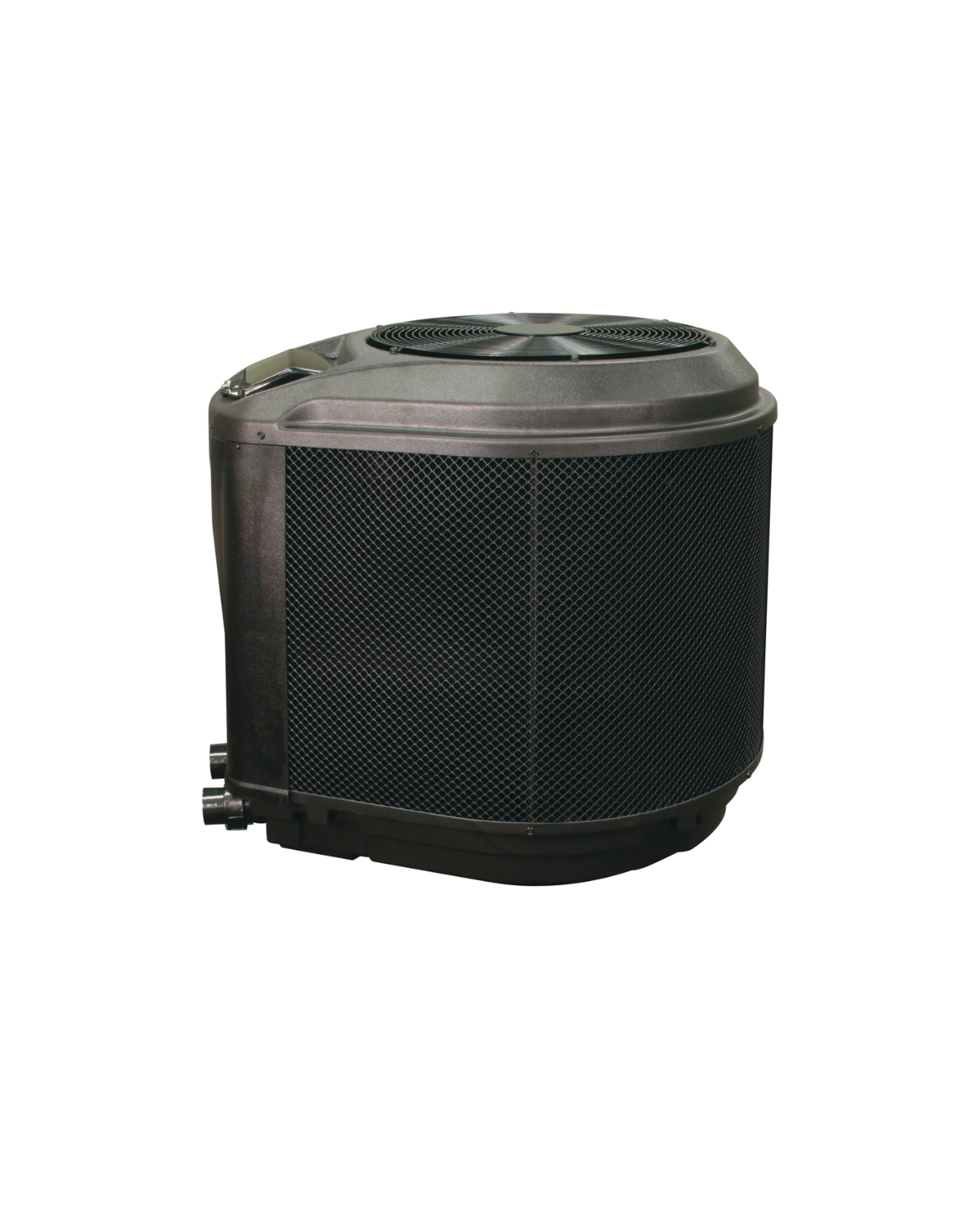

A high-performance and energy-efficient solution for heating pools and spas, the Jandy Pro Series JE Digital Heat Pump (Model AEH‑15‑1031 / JE1500T) employs advanced digital controls and robust engineering to reliably transfer ambient air heat into your pool water for eco-friendly, cost-effective warming
Brand: Jandy
Model: AEH-15-1031 (JE1500T)
Application: Pool heating (suitable for commercial and residential use)
BTU Output: 72,000 BTU
Compressor Type: Reciprocating

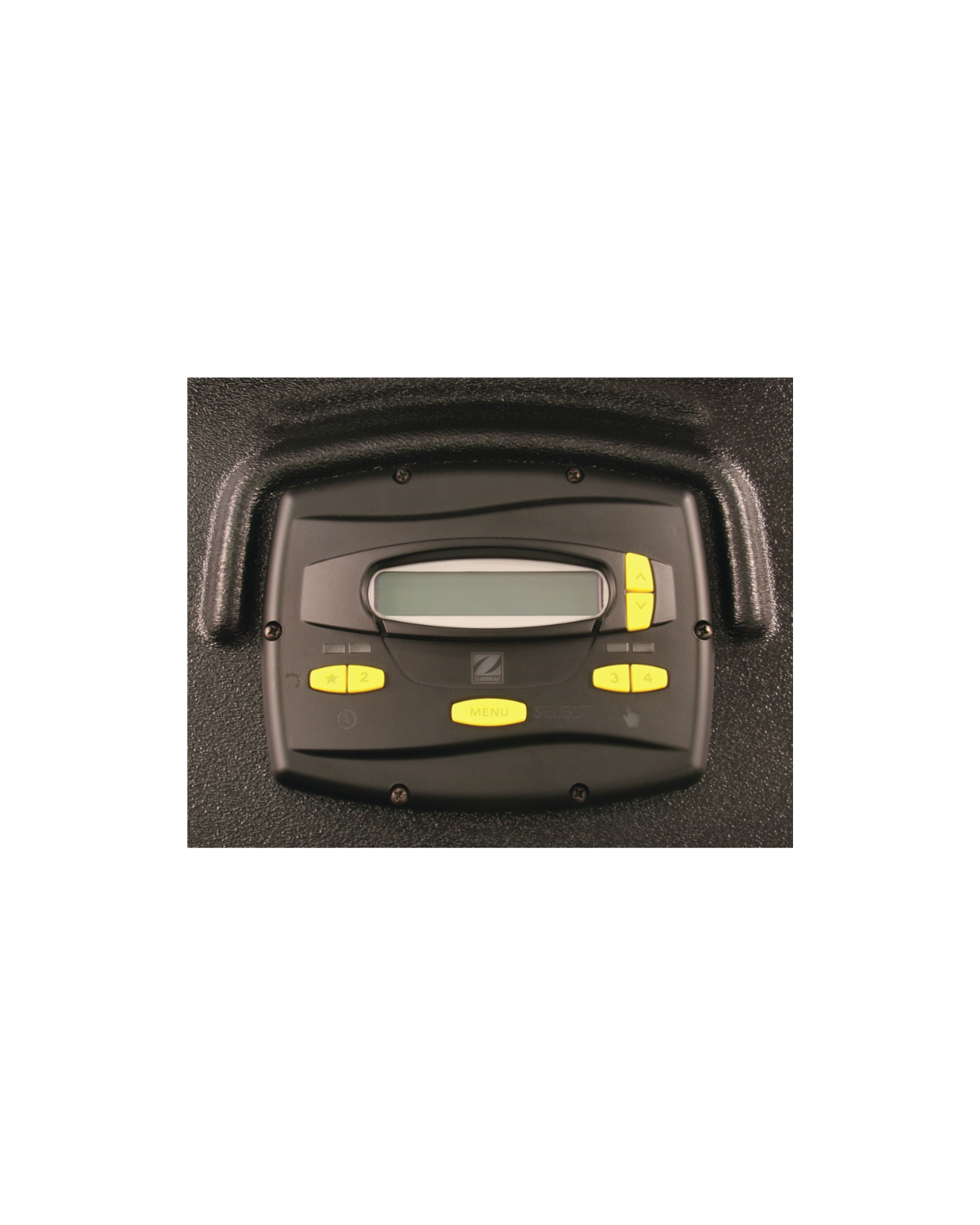

Control Type: Digital electric control
Heat Exchanger Material: Titanium
Flow Rate: Constant at 30 gal/min (maximum and minimum)
Refrigerant: R-410A (environmentally friendly)
Electrical Input: 3.83 kW
Voltage & Frequency: 230 V, 60 Hz, single-phase
Minimum Circuit Ampacity: 26.14 A
Maximum Circuit Breaker: 45 A
Housing Material: ABS (Acrylonitrile Butadiene Styrene)
Weight: 258 lb
Shipping Dimensions: 45.25 in (L) × 38.25 in (W) × 51 in (H)
Cabinet Dimensions:
Depth: 39 in
Height: 34 in
Width: 33 in
Green/Energy-Efficient Designation: Yes
UPC Code: 052337063913
Residential: 2 - year parts and labor warranty, 5 years on the compressor and heat exchanger Commercial: 1 - year parts and labor (warranty is provided by the manufacturer)
Heat Pump Installation Option Details: Covers replacement of an existing heat pump only. Includes up to 20 feet of pipe, 8 fittings, one three-way valve, and one check valve for plumbing connections. Includes electrical connection of no more than 5 feet to the unit. The electrical panel used to feed the heat pump must have sufficient capacity for the unit’s amp draw. There must be a clear passway or walkway from the installation site to the driveway where the technician’s vehicle is parked. Price includes removal of the old unit, if needed. Service available in Miami-Dade, Broward, and Monroe counties.
