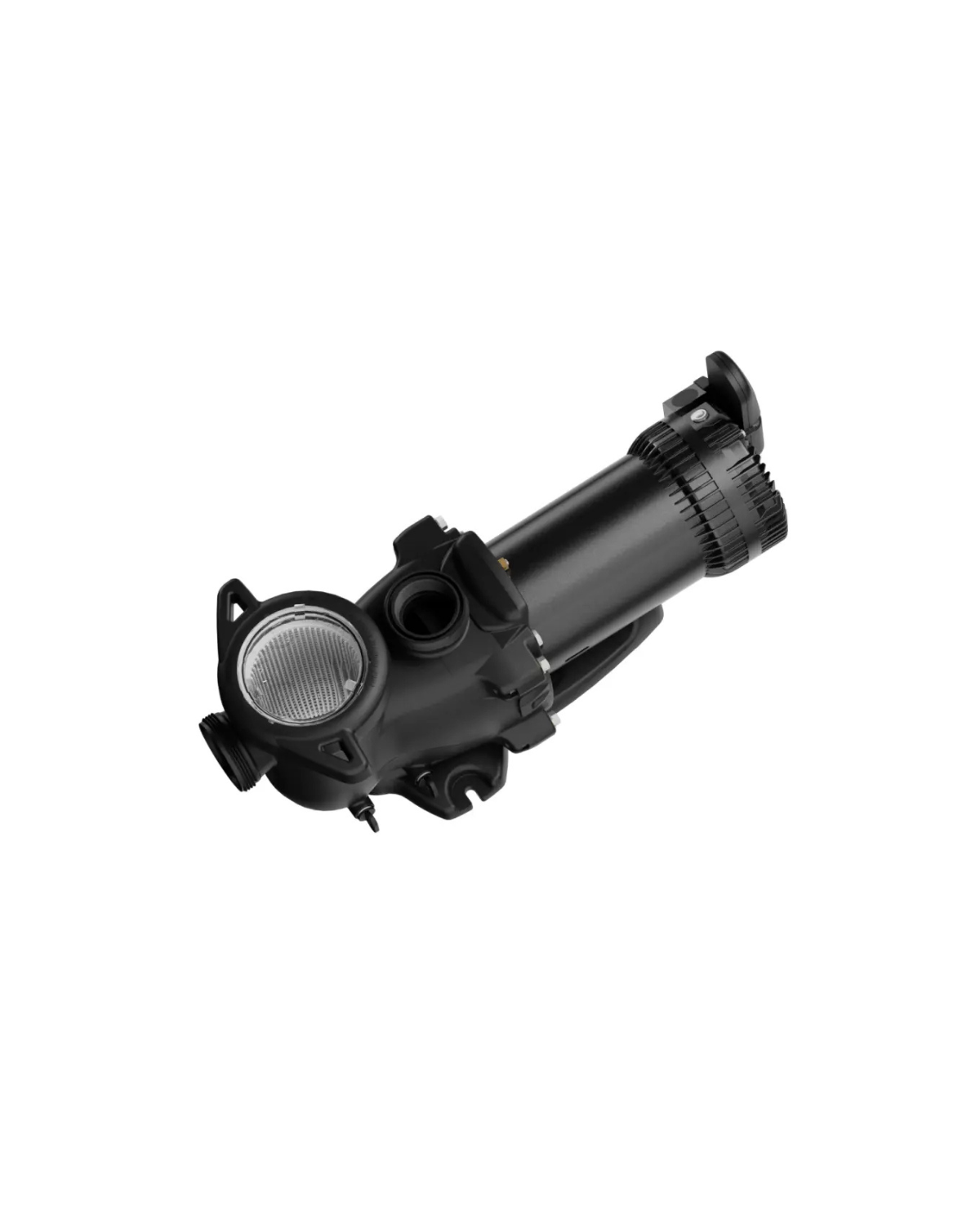

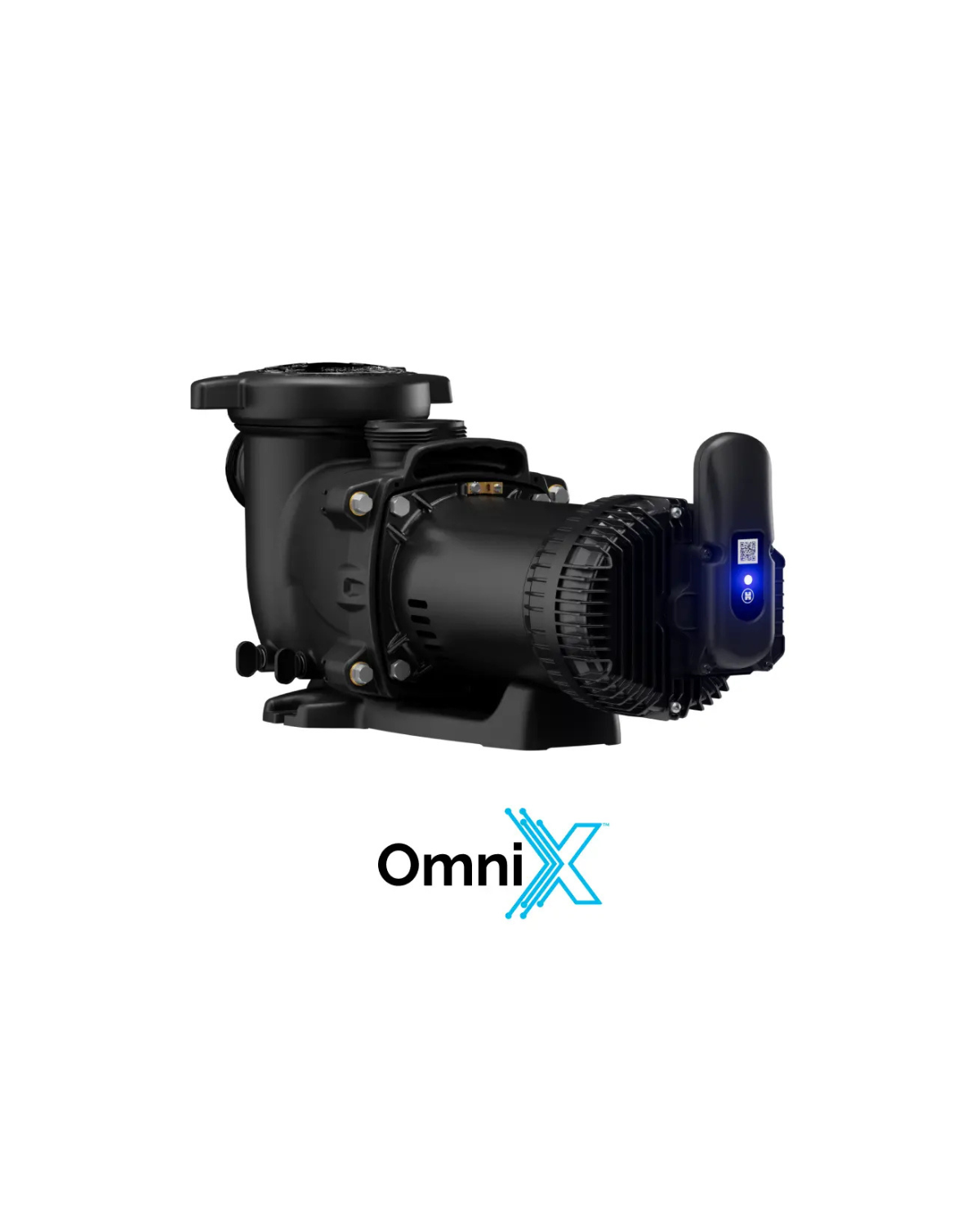

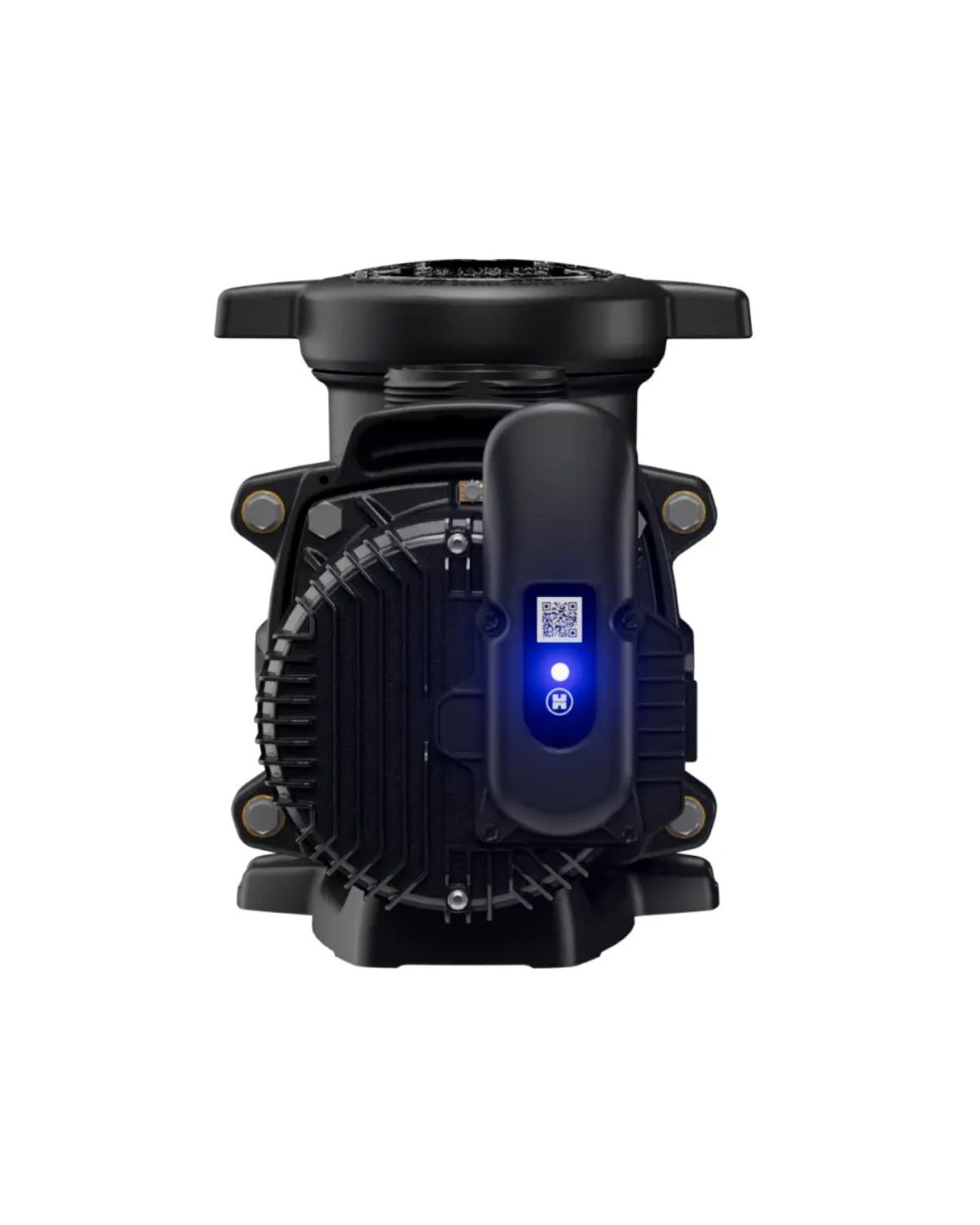

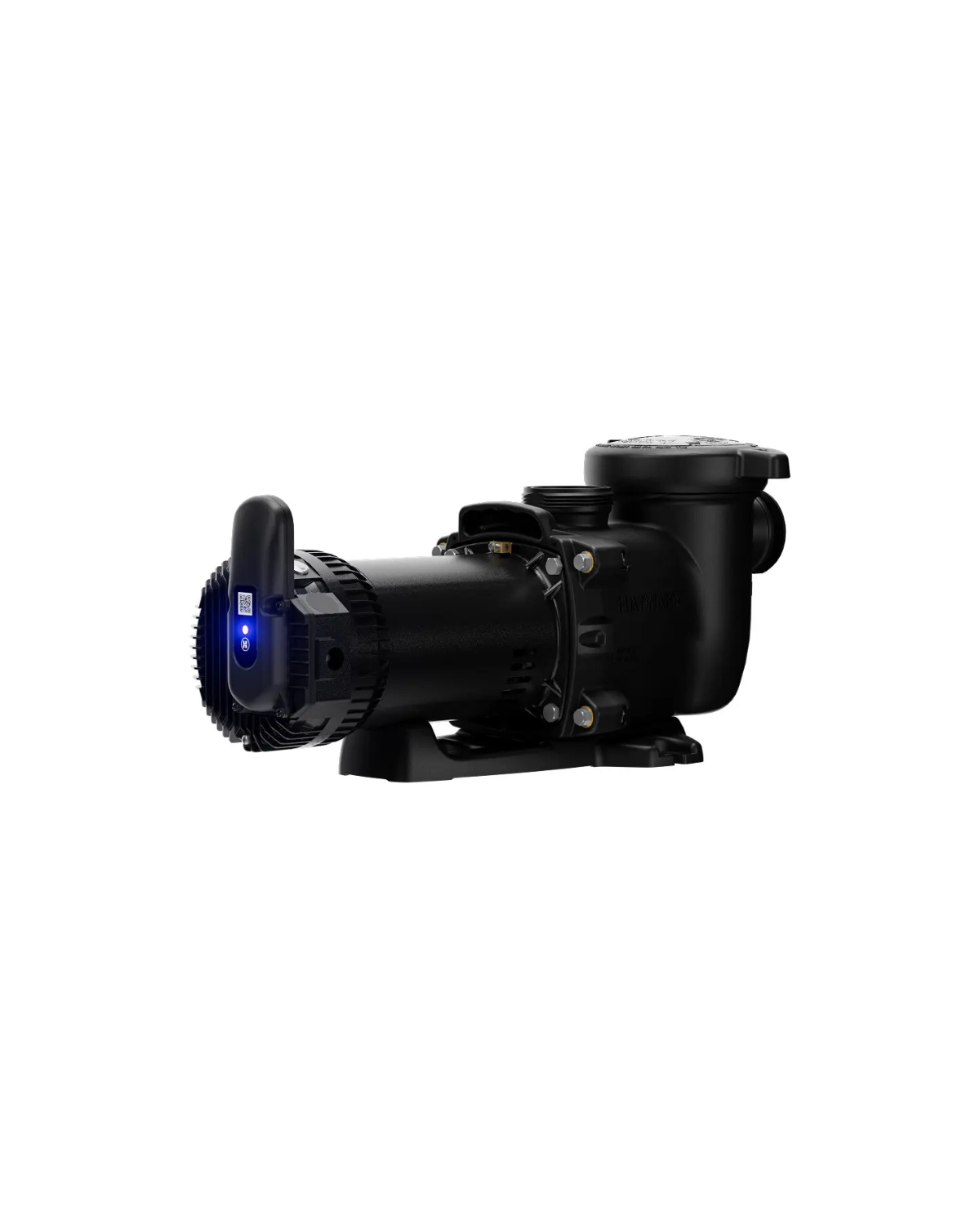

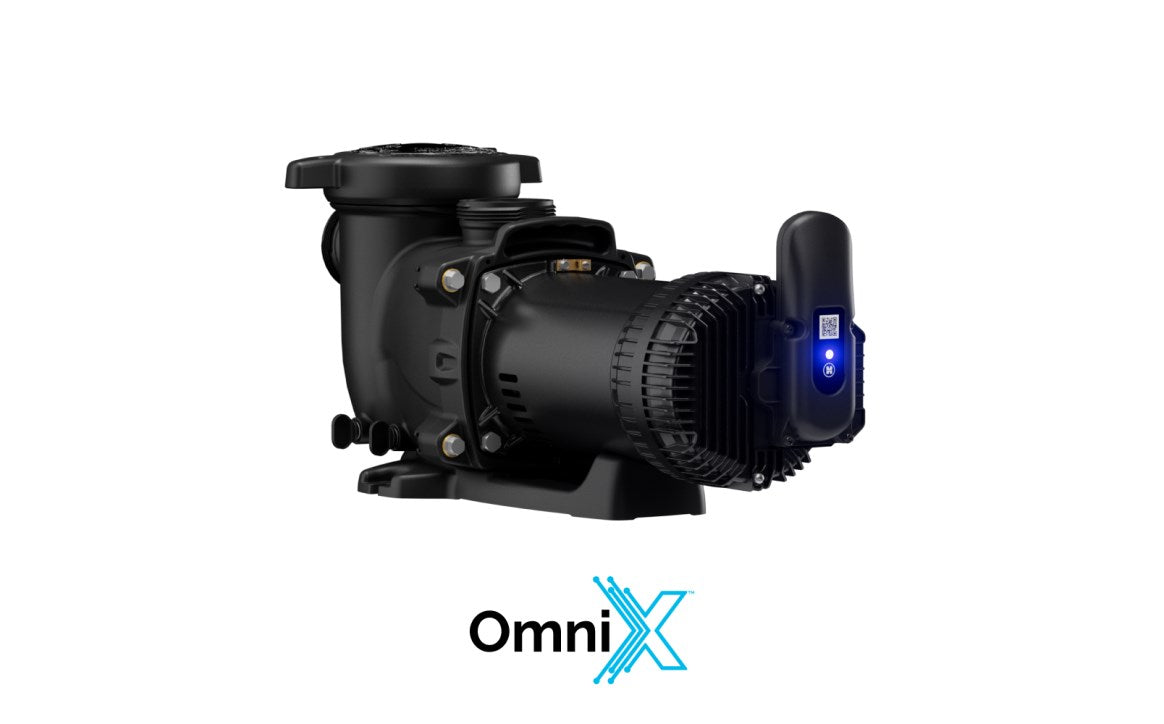

Hayward MaxFlo VS 415 with OmniX — Smart, Quiet, and Efficient

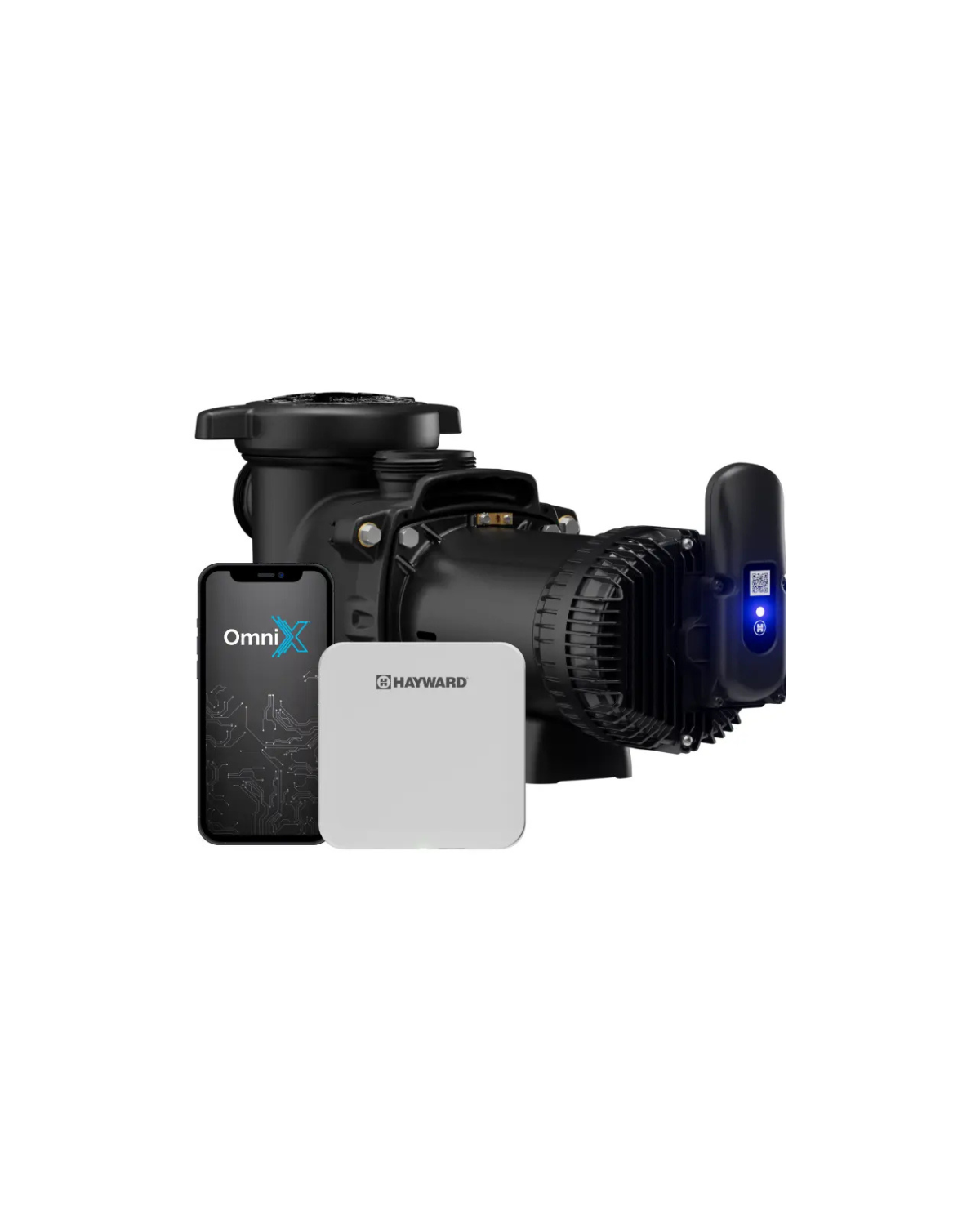

Give your pool a smarter heartbeat. The MaxFlo VS 415 pairs a high-efficiency variable-speed pump with OmniX onboard automation, so you can set speeds, schedule run times, and monitor temperature right from the app—no external controller required. Add the optional OmniX Gateway to control it from anywhere.
Highlights
App-ready control: Simple, intuitive Bluetooth setup in the OmniX mobile app for full pump control and scheduling. Remote access available with OmniX Gateway (sold separately).
Integrated ecosystem: OmniX connects compatible equipment without a central controller, keeping upgrades flexible.
Brand: Hayward
DOE Compliant: Yes
Agency Listings: DOE, NSF, UL
GTIN: 610377453875 (Expert Line) / 610377454063 (Open Line)
Motor Type: ODP / Variable Speed / Permanent Magnet / TEFC
Speeds: Variable Speed
Total Horsepowers (HP): 1.65 HP or 2.25 HP
Voltage (60 Hz): 115 / 230 VAC
WEF (Weighted Energy Factor): 9.6
Pool Type: In-ground residential
Shipping Dimensions: 12.4" height × 29" length × 9.9" width
Shipping Weight: 34 lb
Union Connections: 1.5" × 2"
Additional Features: Quick Clean button – No; Remote Mount Display – No; Rotatable Display – No; Twist Lock – No
Residential: 1-year labor & 3-year replacement parts Commercial: 1-year parts and labor (Warranty is provided by the manufacturer)
Pool Pump Installation Option Details: Covers replacement of an existing pool pump only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Electrical work includes connection to the existing electrical cable only — does not include rewiring or running a new cable. Service available in Miami-Dade, Broward, and Monroe counties.
