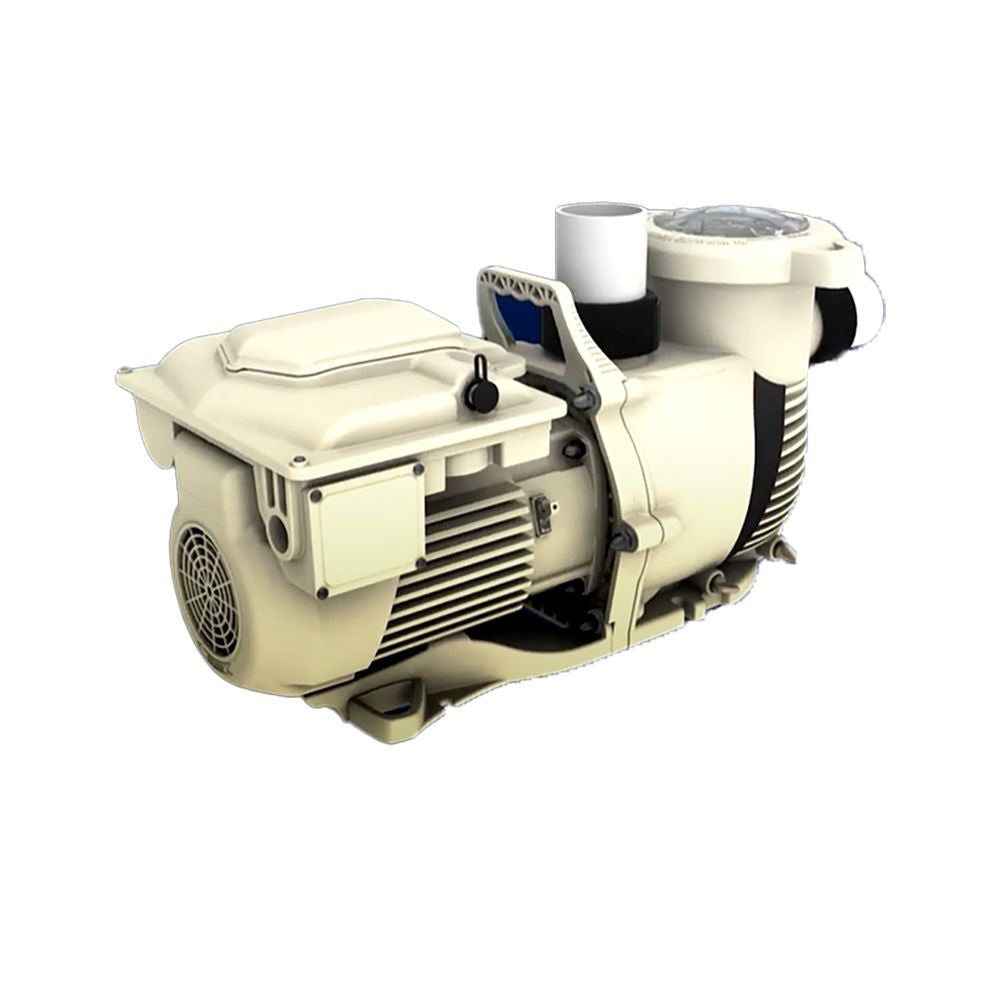

WhisperFloXF® VS High Performance Pump – 5 HP 208-230V / 460V
Horsepower: 5.0 HP
Voltage: 208-230V or 460V (single- or three-phase, depending on configuration)
Motor Type: TEFC (Totally Enclosed Fan-Cooled), permanent magnet variable-speed motor
Speed Range: 300 – 3450 RPM (programmable)
Control: Integrated digital drive with user interface for speed and scheduling
Flow Rate: High-flow performance design, capable of exceeding 200 GPM (varies by system head)
Port Size: 3″ × 3″ union connections for maximum flow capacity
Pump Housing: Thermoplastic with reinforced composite for strength and corrosion resistance
Impeller: Hydraulic, high-efficiency design for commercial-grade performance
Seal: Heavy-duty Viton® mechanical seal, chemical and heat resistant
Strainer Basket: Extra-large capacity with see-through lid and tool-free access
Noise Level: Quiet operation with variable-speed technology
Mounting Base: Heavy-duty base for secure commercial installation
Application: Large residential pools, commercial pools, aquatic facilities, and water features requiring high flow and energy efficiency
Certifications: NSF listed, DOE compliant, Energy Efficient
Dimensions: ~31″ L × 13.5″ W × 16.5″ H (approximate)
Weight: ~100 lbs
